Scale Nanoparticle Purification with qEV Tangential Flow Filtration
Moving from mL to L shouldn’t mean reinventing your workflow

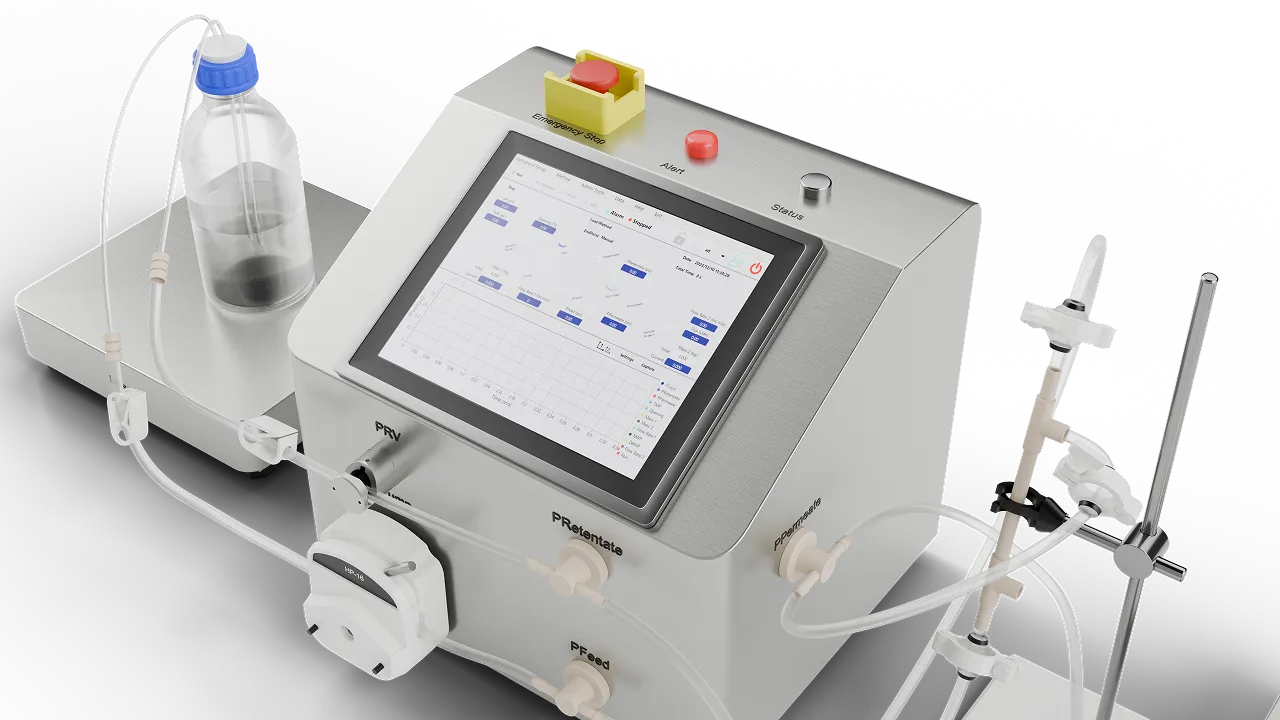

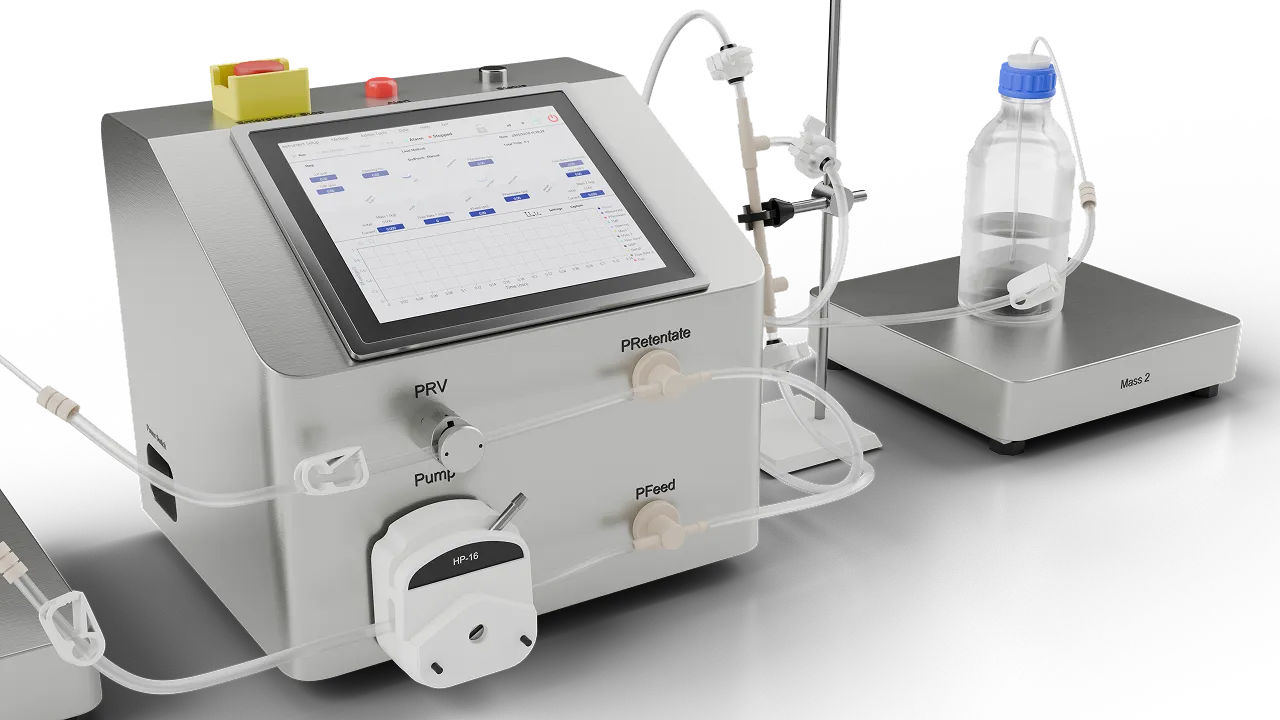

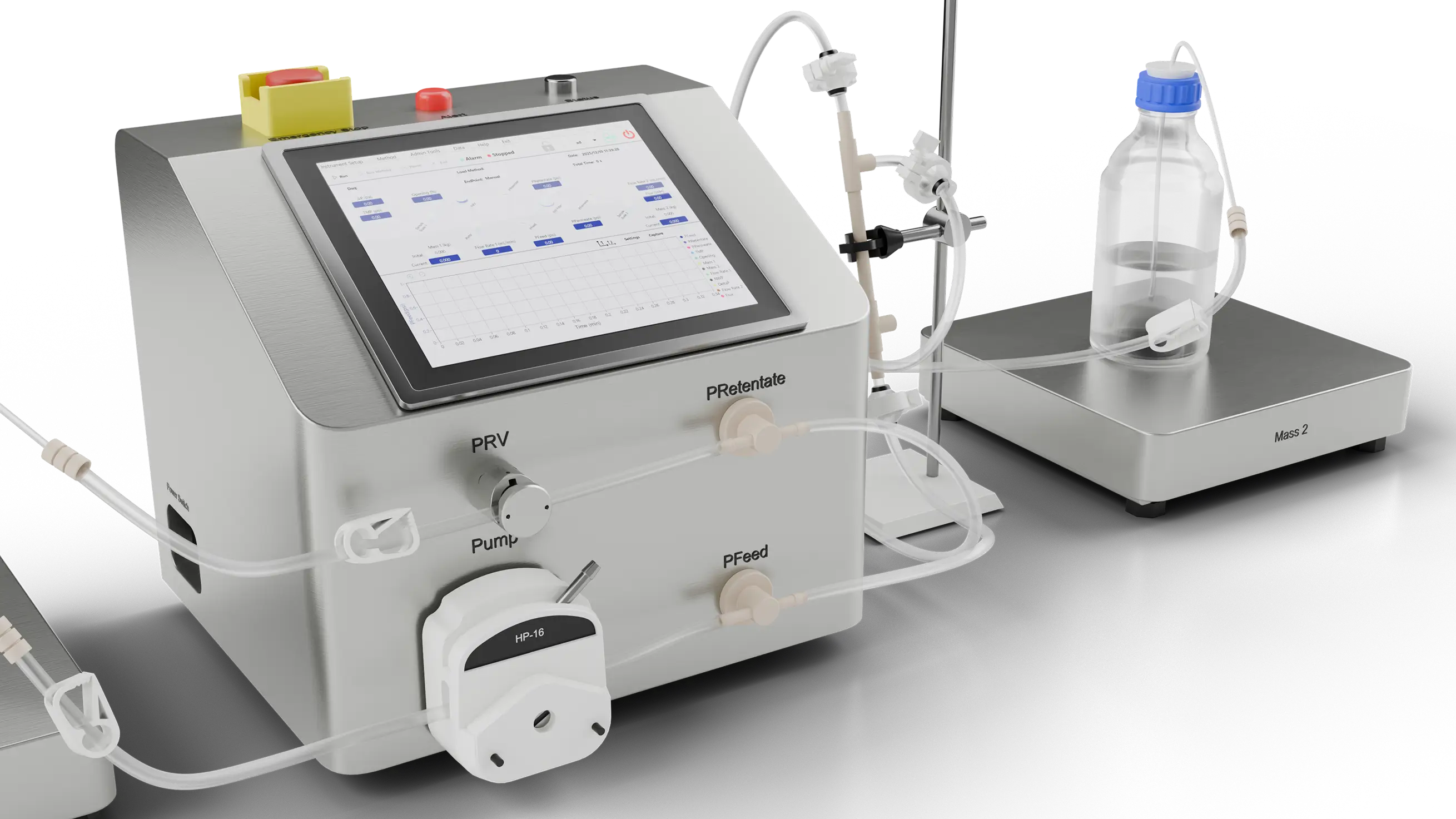

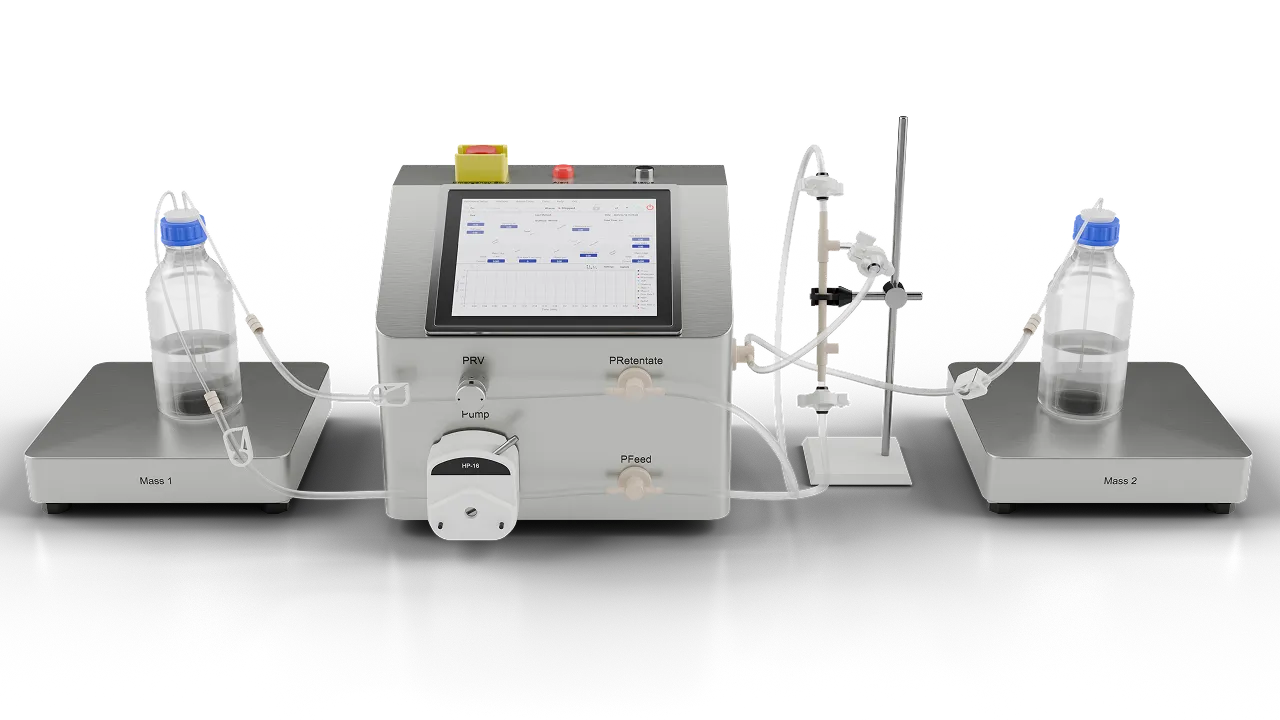

qEV TFF systems reduce sample volume to support large-scale purification of extracellular vesicles and other nanoparticles.
Whether you need to concentrate before or after qEV isolation, or complete a buffer exchange, qEV TFF adapts to your workflow.
Complete your large-scale processing
Designed to complement your qEV isolation workflow. Available as a standard research model, or a GMP-ready system built for regulated, large-scale production.
Raw Sample
Concentrate
Isolate
Analyse
Processing Capacity
Concentrate up to 10x
Standard model: 0.5 L to 10 L sample input
cGMP model: 0.5 L to 20 L sample input
Filtration
Compatible with hollow fibre and cassette membranes
3-750 kDa filters
Monitoring and Control
Standard model: 1x peristaltic pump, 0.14–2.2 L/min flow rate
GMP-Ready model: 2x peristaltic pumps (feed + recirculation), 0.14–4.5 L/min flow rate
Real-time TMP display, operational parameters, status, and pressure alarms
Functions
Concentration, diafiltration, flushing, normalised water permeability, real-time data display
Pricing
qEV TFF System: $17,900 USD - for routine laboratory use
GMP-Ready qEV TFF System: $35,000 USD - 21 CFR Part 11 compliant, for regulated and large-scale production
Compatible with:
Ready to scale your nanoparticle isolation workflow?
Whether you’re building a platform from scratch or scaling an established R&D protocol, we’re here to make sure your nanoparticle isolation process is consistent, efficient, and future-ready.
Get in touch
